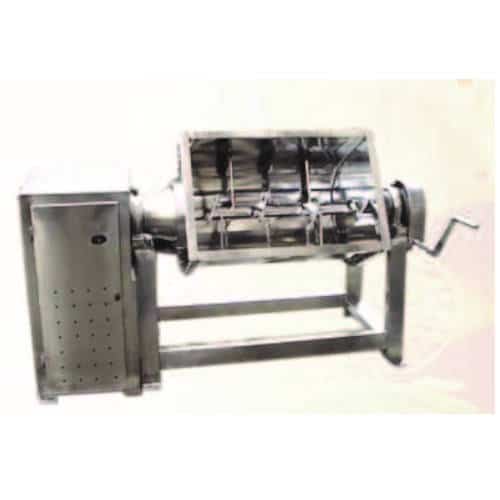

Nu Pharma is offering Mass Mixer Machine with consists of a rigid fabricated structure motor, gearbox, mixing drum, stirrer, and tilting device. A specially designed self-adjusting sealing arrangement of unique design is provided to ensure that no black particle enters into mixing drums. The tilting device is provided to make easy the unloading of the material and easy cleaning of the mixing drum. A special designed mixing paddle is provided to make sure of homogeneous mixing in a drum. All arrangements have been mounted on a sturdy frame.

Product description

Mass Mixer Working Principle

Mass Mixer Machine Application and Process

The mass mixer machine is designed for uniformly mixing of dry and wet material and especially suitable for the powder of pharmaceuticals, Ayurvedic & Chemicals.

Mass Mixer Machine Safety Arrangements

The cover of the drum is interlocked. The mechanism does not let the machine start until the cover is properly closed

Mass Mixer Advantages

  • In compliance with cGMP guidelines
  • Homogeneous efficient mixing through paddle-type blades welded to the main shaft which is horizontally mounted in the container & has single speed, simple rotation
  • All Contact parts of SS 304 Material. (Contact parts of SS 316 material is optional)
  • Easy Cleaning and operating
  • An interlocking system on the cover is provided to avoid the accident
  • Tilting device provided by means of Handwheel for easy unloading of material
  • Models for small scale, lab Scale capacity as per customize requirements are available
  • FLP construction can be provided with extra cost.

Mass Mixer Capacity and Specifications

Model NUMM-50 NUMM-100 NUMM-150 NUMM-200  NUMM-300
Working Capacity 110 Ltrs 220 Ltrs 330 Ltrs 330 Ltrs 560 Ltrs
Speed of Paddle 35 RPM 35 RPM 30 RPM 30 RPM 20 RPM
Electric Power 3 HP / 1440 RPM 5 HP / 1440 RPM 7.5 HP / 1440 RPM 7.5 HP / 1440 RPM 15 HP / 1440 RPM
Foot prints in mm (L X B X H) 1900 X 950 X 1150 2100 X 950 X 1150 2300 X 1000 X 1500 2300 X 1000 X 1500 2850 X 1250 X 1800
