Nu Pharma has hold in industries for customized design in Pin Mills

Key Features

  • High energy efficiency
  • Low heat generation
  • Easy to clean
  • Variable particle size depending on RPM
  • Uniform size particles
  • High throughput
  • Capable of handling a variety of materials
  • Choice of construction material
  • Compact size
  • Mechanical / Pneumatic conveying option
SKU: NUPMM Category: Industrie:

Product description

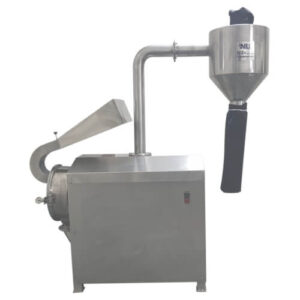

Pin Mill

We Are the Leading manufacturer and Exporter of Pin Mill in Ahmedabad, Gujarat, India

Pin Mill Working Principle

  • Material fed in the center between counter-rotating rotors with cylindrical pins.
  • Centrifugal force pushes the powder to the periphery.
  • The powder contacts with the cylindrical pins and are size reduced due to the impact.
  • The force exerted is proportional to the tip speed (up to 130m/s).
  • The powder passes through a sieve fixed at the bottom
  • The fineness of the particles can be adjusted by controlling the RPM
  • Cyclone separator to collect the powdered material
  • The continuous circulation of air in the system prevents any heat buildup during the operation.
  • Generally, for large outputs, the collection is done pneumatically with the help of a blower. The end product is collected in a cyclone collector. Fines are collected in fabric-type dust collectors.
  • Output material collection is done by screw conveyor

Pin Mill Applications

Size reduction of a variety of materials Paints Powder, Powder Soap, Lithopon, Tark, Celluloid, Dye-stuff, Bakelite Pigments, Animal, Charcoal, Sugar, Wheat, Barley, Maize, Rice Powder, Tapioca root, Starch, Tomato, Corn, Powder of sweet potato, cereals, spices, Resin, Bark Pyrethrum flower, Charcoal powder, Dried grass, Ayurvedic herbs & leaves, Mehendi Leaves, Tobacco leaves, Oyster shells, Bone powder, Soya bean, cakes, paper powder, Tea, Bran & husk powder, General manure, Quick lime, Clay, Coal Plaster, Graphite Antimony, Aluminium, Golden Ore, Ceramics, Ayurvedic Pin Mill, etc.

Capacity

  • Minimum: – 10 Kg/hr
  • Maximum: – 3000 Kg/hr

*Capacity can be customized according to client need



Pin Mill With Both Disc Rotating

Pin Mill With Both Disc Rotating

These pin mills have both discs rotating either in one direction or opposite direction. The relative speed is very critical and is maintained within design limits. The discs are rotated by two independent motors. by two independent motors. These pin mills are without These pin mills are without screen and produce fine particle size.



Pin Mill With Pneumatic Conveying System

Pin Mill With Pneumatic Conveying System

Sugar Pin Mill

Sugar Pin Mill
